UBA4Custom

UBA5 Custom

The charge and discharge current and the voltage range of the UBA5 can be customized to meet your requirements. For example, if you want to test small button-type cells, primary or secondary, we can build a UBA5 for you that can test the battery in the micro or milliamp range.

SKU: UBA5-Custom. Categories: , .

The charge and discharge current and the voltage range of the UBA5 can be customized to meet your requirements.

For example, if you want to test small button-type cells, primary or secondary, we can build a UBA5 for you that can test the battery in the micro or milliamp range.

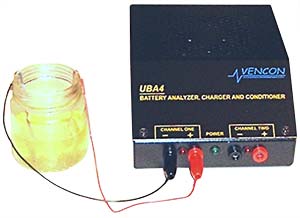

A custom UBA5 with a picoampre input buffer was used as a three electrode galvanostat for electrochemistry research, published in Nickel-Metal Hydride (Ni-MH) Battery Using Mg2Ni-type Hydrogen Storage Alloy, Journal of Alloys and Compounds, 302 and in An AC Impedance Study of Self-Discharge Mechanism of Nickel-Metal Hydride (Ni-MH) Battery Using Mg2Ni-type Hydrogen Storage Alloy Anode, Electrochimica Acta 45.

Please contact us and we’d be happy to have one of our engineers discuss with you your testing requirements.

Get the latest Software Version and User Manual pdf on the Support Page

UBA Comparison Chart

Which UBA is best for you?



Analyzer Power supply included Maximum Battery Voltage2 Maximum Discharge Current/Power
(per channel)
Maximum Charge Current
(per channel)
UBA5PS yes 18.5V 3A/45W 2.0A
UBA5-8APS yes 18.5V 8A/45W 2.0A
UBA5-44V small1 NiCd/NiMH: 31.2V
SLA: 36V
Lithium: 37V (10S)
3.0A/45W 2.0A
UBA5-60V small1 NiCd/NiMH: 43.2V
SLA: 48V
Lithium: 51.8V (14S)
2.5A/45W 2.0A
UBA5-70V small1 NiCd/NiMH: 49.2V
SLA: 56V
Lithium: 59.2V (16S)
2.5A/45W 2.0A

1 The small power supply is for powering the UBA5 only, it does not provide the charge current.

2 The maximum battery pack voltage depends on the battery chemistry.

Notes:

  • All UBA5s come with a serial and USB cable, battery cables, software, manual, and unlimited technical support from our engineering department.
  • All UBA5s can discharge at up to 3A per channel (2.5A for UBA5-60V/UBA5-70V) with a 45W per channel limit
  • All UBA5s can test battery packs down to a single cell, any chemistry
  • All power supplies are universal input, i.e. they work in North America, Europe, or Asia.
