High Current UBA5

$1,095.00$1,295.00

Ideal for testing lithium ion single or two cell batteries.

Clear
SKU: UBA5−20AGP Categories: ,

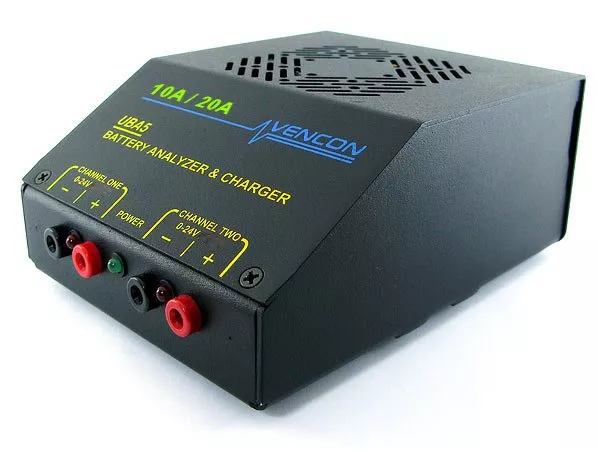

This is the high current version of the UBA5 with a 8A, 10A or 12A per channel maximum load current. It is designed for testing of lithium ion single or two cell batteries. Both channels can be paralleled for 16A, 20A or 24A respectively of load current!

These high current UBA5s come with a 19V 4.5A power supply.  15V or 24V supply available upon request.  Contact us for further information.

Download UBA5-20A brochure

Download UBA5-24A brochure

Specs

Battery type: All chemistries, primary and secondary cells
Battery voltage: Single cell to 18.5V pack
Battery capacity: 10mAh to over 250Ah
Charge current: Up to 2A per channel
Load current: Up to 12A per channel
Load power: 45W per channel
Number of channels: 2
Interface: USB and Serial
Approvals: CE and FCC

(full specs in brochure)

Compare

Which UBA is best for you?

All UBA5 models have two channels and can network with each other.  They differ by their maximum battery voltage and load current.

Analyzer Power supply included Maximum Battery Voltage2 Maximum Discharge Current/Power
per channel(double the current & power when paralleling both channels)
Maximum Charge Current
per channel(double the current when paralleling both channels)
UBA5 yes 18.5V for lithium ion 3A / 45W 2.0A
UBA5-High Current yes 18.5V for lithium ion 6A to 12A / 45W 2.0A

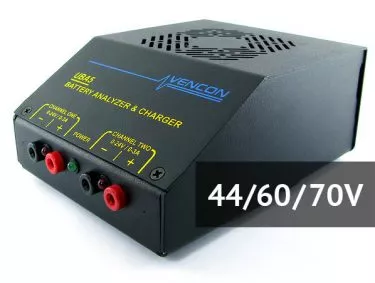

UBA5-High Voltage small1 Up to 59.2V depending on model. 2.4A or 3.0A / 45W 2.0A

1 The small power supply is for powering the UBA5 only, it does not provide the charge current.

2 The maximum battery pack voltage depends on the battery chemistry.

Notes:

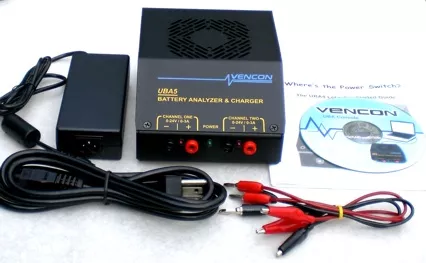

  • All UBA5s come with a serial and USB cable, battery cables, software, manual, and unlimited technical support from our engineering department.
  • All UBA5s can discharge at up to 3A per channel (2.4A for UBA5-60V/UBA5-70V) with a 45W per channel limit
  • All UBA5s can test battery packs down to a single cell, any chemistry
  • All power supplies are universal input, i.e. they work in North America, Europe, or Asia.

Support

Get the latest Software Version and User Manual pdf on the Support Page
