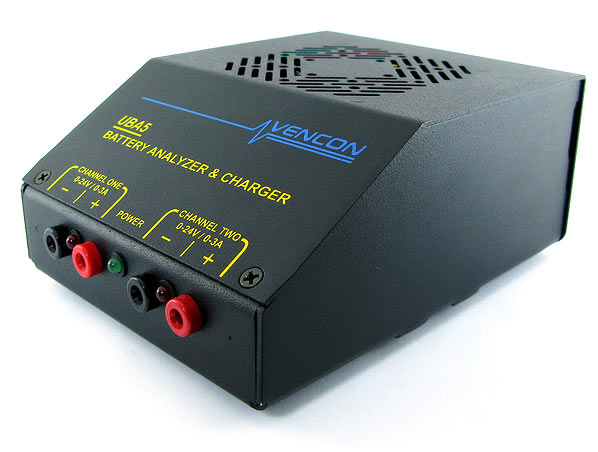

UBA5 Battery Analyzer & Charger

$895.00$925.00

UBA5 with UL and CSA approved power supplies.

Clear
SKU: N/A Category:

The UBA5 battery analyzer tests, conditions, and charges batteries and then generates a test report showing the condition of the battery.

If you are already a battery expert you’ll be pleased to know that the UBA5 has enough features for even the most demanding battery test applications. With its graphical programming interface you can easily design a battery test to do exactly what you want. You can specify the charge method (constant current or constant voltage with peak, timed, or temperature termination) and the charge and discharge currents. You can even use conditional loops in the test. All voltage, current and temperature readings are stored in a standard text results file.

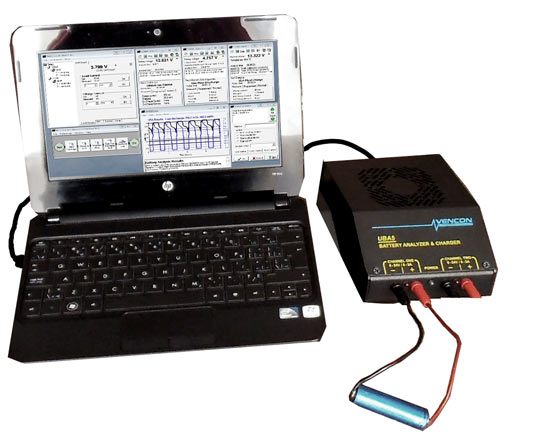

The UBA5’s power lies it its ability to leverage the power of your PC – it has neither display nor keyboard. We keep the UBA5 simple and put the intelligence into the Software on your PC where it belongs.

UBA5 Features

  • Works with all battery chemistries (NiCd, NiMH, SLA, lead acid, lithium ion, lithium polymer and primary batteries).
  • Fully programmable: you can set all charge and discharge currents, voltage settings, and charge algorithms.

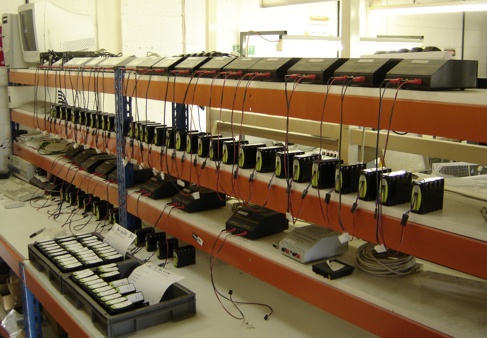

  • Includes easy to use and powerful UBA Console software that allows you to graphically design your battery analysis routines and can simultaneously control over 100 UBA5s from one PC.
  • Can run one test cycle to check capacity or thousands to test battery life.
  • Comes with two channels that can each analyze a battery or can be combined with each other or other UBA5s for unlimited charge and discharge current.
  • Stores all results in industry standard text format that you can import into your favorite spreadsheet
  • Battery temperature sensor option: use ours, use yours or use your battery’s built-in sensor.
  • Two year warranty and 30 day money back guarantee.
  • Lead free/RoHS, FCC approval and CE Mark.
  • You will not find a more powerful battery analyzer for less money, we guarantee it.

Want to try out a UBA5?  Download our full featured “no install” software with a simulated UBA5 here: UBA5Demo

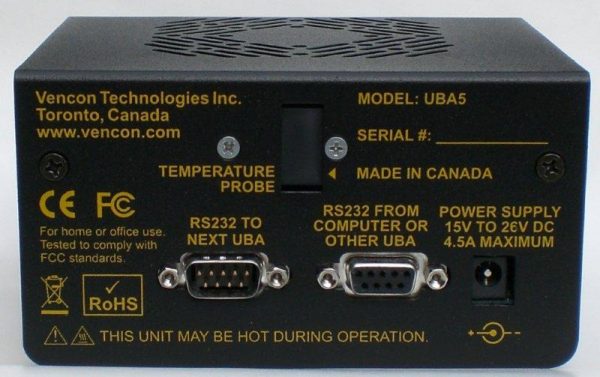

The UBA5 connects to your PC via serial or USB port or with an optional WiFi/Ethernet adapter that we sell.

You can order your UBA5 with either a 15V, 19V or 24V power supply.
The UBA5 includes a built-in dual low noise linear charger so the power supply voltage needs to be at least 2V higher then the battery charge voltage.

UBA5 with a 15V 4.5A Power Supply

Works with batteries up to 11.1V for li-ion (9V for NiCd/NiMH).
Choose this if the UBA5 will be used exclusively on low voltage batteries.
Approvals: UL, CSA, CE, efficiency level VI and RoHS

UBA5 with a 19V 4.5A Power Supply

Works with batteries up to 14.4V for li-ion (12V for NiCd/NiMH or SLA).
This supply is ideal if your batteries are 12V or lower (4S for lithium).
Approvals: UL, CSA, CE, efficiency level VI and RoHS

UBA5 with a 24V 4.5A Power Supply

Works with batteries up to 18.5V for li-ion (16V for NiCd/NiMH).
For batteries below 12V the UBA5 cuts back the maximum charge current.
Approvals: UL, CSA, CE, efficiency level VI and RoHS

Accessories for your UBA5

Do you want your UBA5 to record your battery’s temperature during the analysis?  Or have over and under temperature protection?  Then consider ordering a set of temperature probes with your UBA5.

Maybe have your UBA5 control an external load or charger?  In that case we have a dual digital optoisolated output module that comes with two temperature probes.  Order it with your UBA5 and it will come pre-installed.

Specs

Battery type: All chemistries, primary and secondary cells
Battery voltage: Single cell to 18.5V pack (or higher)
Battery capacity: 10mAh to over 100Ah (or less – see custom)
Charge current: Up to 2A per channel
Load current: Up to 3A per channel
Load power: 45W per channel
Number of channels: 2
Interface: USB and Serial
Approvals: CE and FCC

(full specs in brochure)

UBA5 Brochure
UBA5 Brochure (francais)

Compare

Which UBA is best for you?

All UBA5 models have two channels and can network with each other.  They differ by their maximum battery voltage and load current.

Analyzer Power supply included Maximum Battery Voltage2

Maximum Discharge Current/Power
per channel

(double the current & power when paralleling both channels)

Maximum Charge Current
per channel

(double the current when paralleling both channels)

UBA5 yes 18.5V for lithium ion

3A / 45W

2.0A
UBA5-High Current yes 18.5V for lithium ion

6A to 12A / 45W

2.0A
UBA5-High Voltage small1 Up to 59.2V depending on model.

2.4A or 3.0A / 45W

2.0A

1 The small power supply is for powering the UBA5 only, it does not provide the charge current.

2 The maximum battery pack voltage depends on the battery chemistry.

Notes:

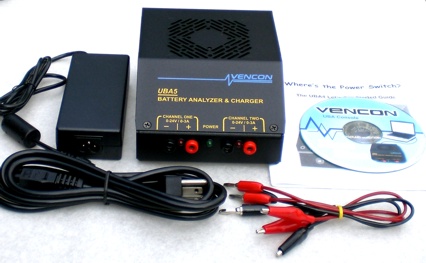

  • All UBA5s come with a serial and USB cable, battery cables, software, manual, and unlimited technical support from our engineering department.
  • All UBA5s can discharge at up to 3A per channel (2.4A for UBA5-60V/UBA5-70V) with a 45W per channel limit
  • All UBA5s can test battery packs down to a single cell, any chemistry
  • All power supplies are universal input, i.e. they work in North America, Europe, or Asia.

Support

Get the latest Software Version and User Manual pdf on the Support Page
